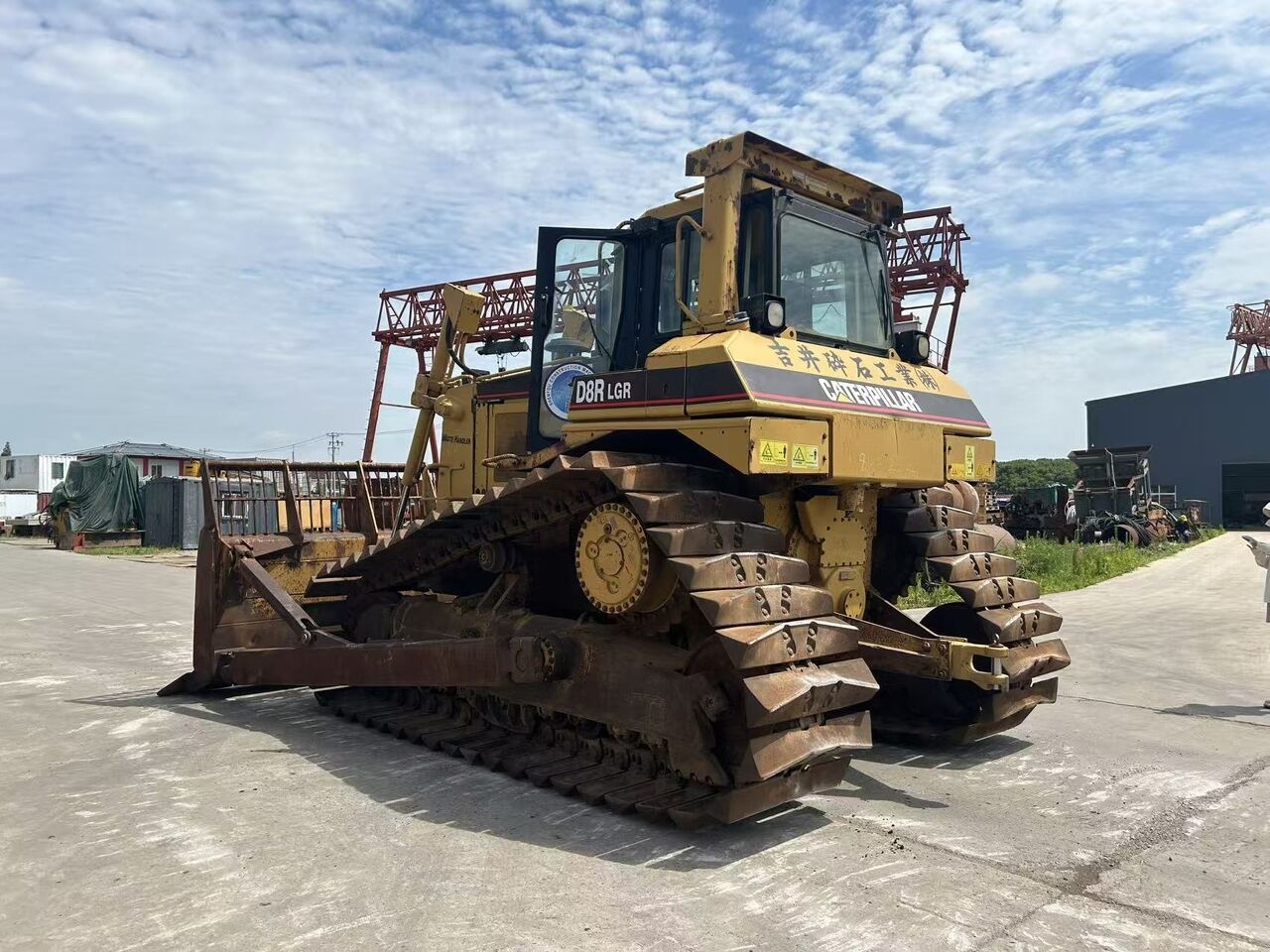

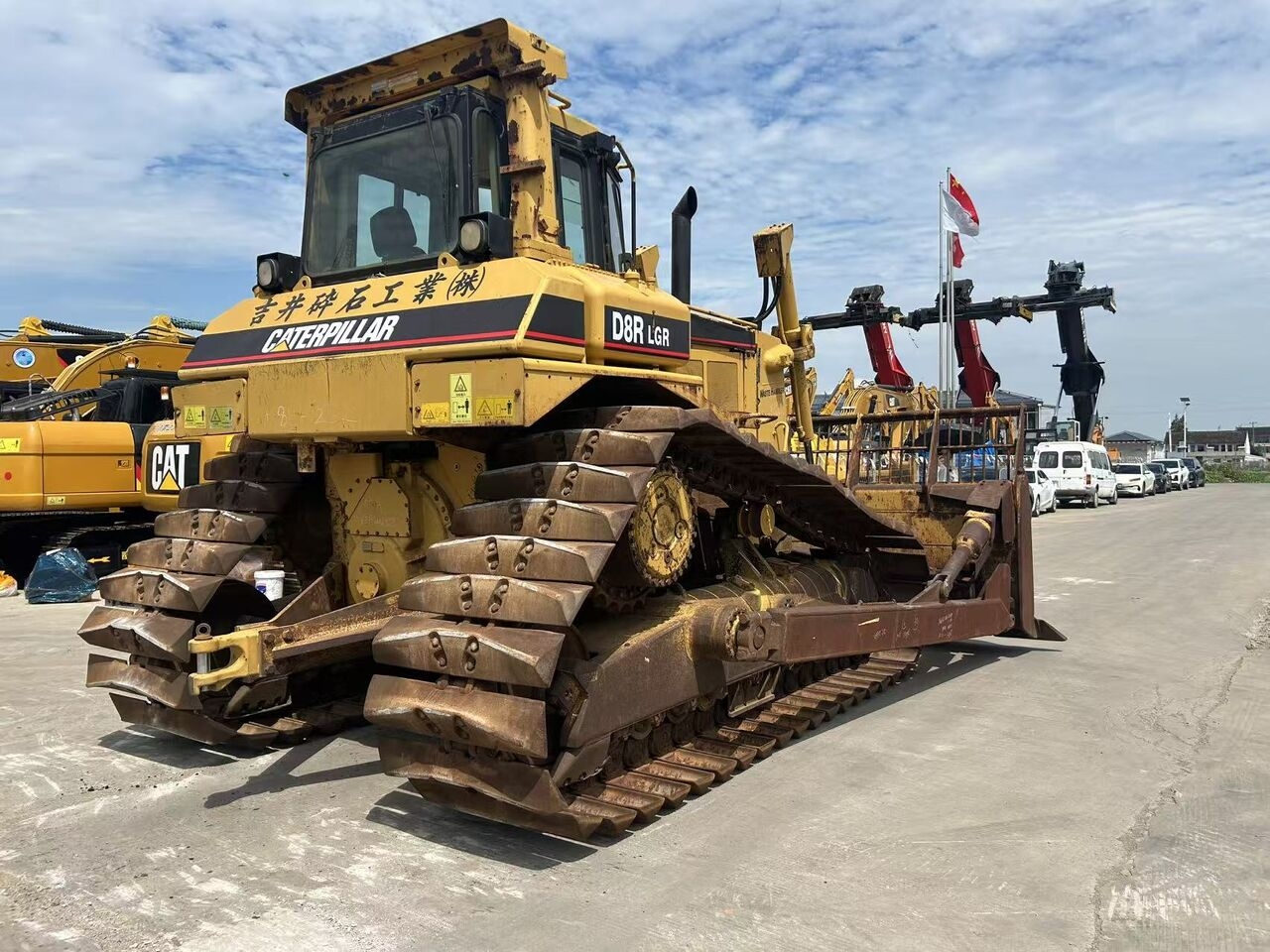

Bulldozer CATERPILLAR D8R LGR

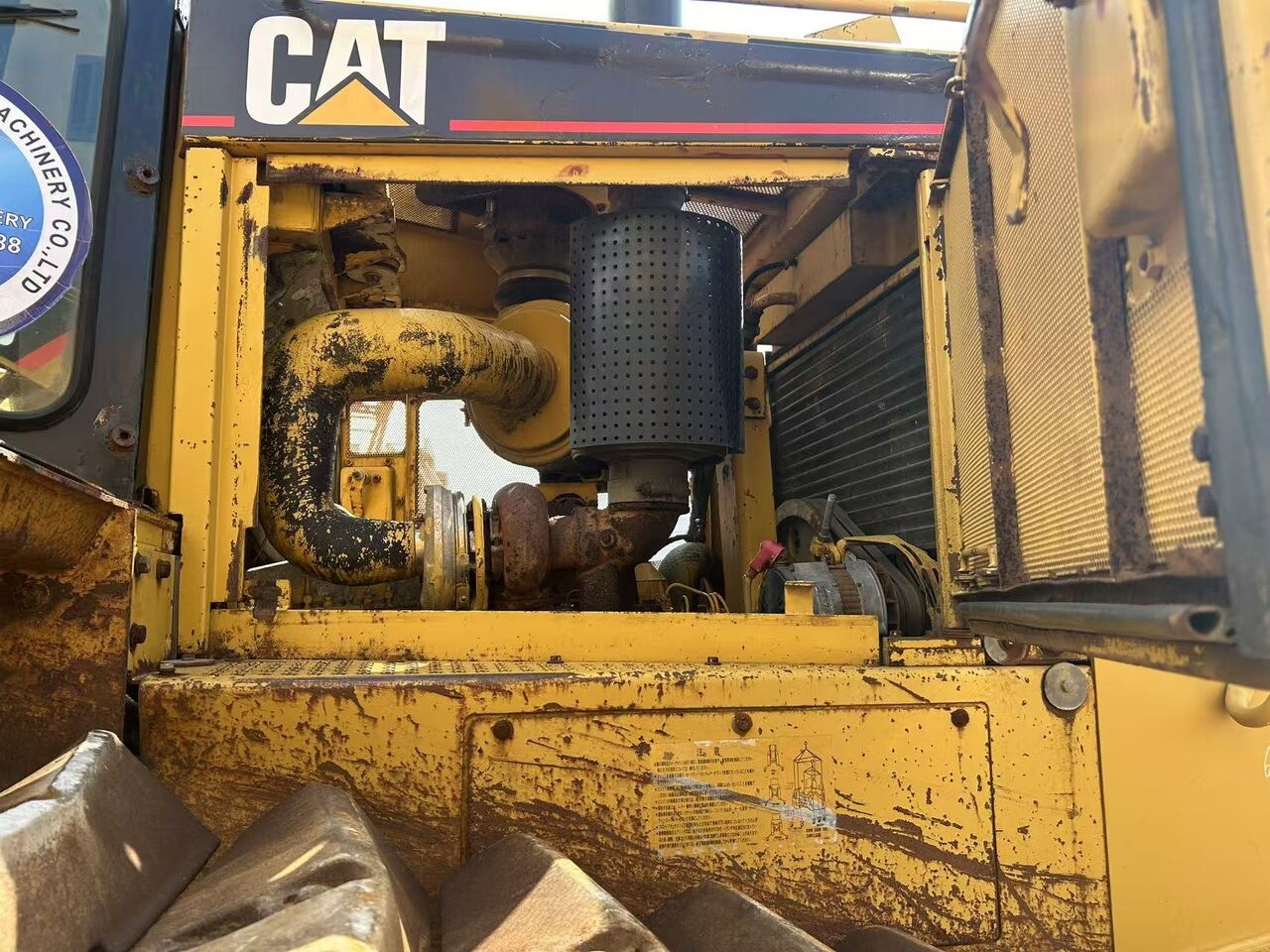

-Engine model: CAT 3406CTA direct injection diesel engine -Net power of flywheel: 305hp/228kW @ 2100rpm -Emissions: Non Tier4 mechanical injection, suitable for low-quality diesel in Africa and Southeast Asia, no need for urea -Fuel tank capacity: 625L -Cooling system: increase modular heat dissipation, avoid high temperature operation in swamps ### 2. Whole machine weight and grounding pressure (difference in LGP core) -Operating weight of LGP machine: 33725kg (74363lb) -Standard ordinary D8R grounding pressure: 95kPa -D8R LGP wetland grounding pressure: 50.7kPa (7.4psi), nearly 40% lower than the standard version, anti subsidence core indicator H-CPC -Wetland track board width: 965mm (38 inch widened wetland track), standard version only 610mm Cat -Track gauge: 2083mm; total length of grounding track: 3258mm ### 3. Overall dimensions (with U-shaped bulldozer shovel) -Total length (including shovel): 6398mm -Machine width: 3260mm (widened track exclusive width) -Total height of the cab: 3441mm -The ground clearance is raised, and the mud does not support the bottom ### 4. Bulldozer and Hydraulic -Equipped with standard LGP widened U-shaped shovel, with a bucket capacity of 11.7m ³ and a larger H-CPC for single soil pushing -Load sensing hydraulic system, pilot control, smooth composite action -Hydraulic system pressure 3500psi, sufficient power for blade lifting and lateral movement -Optional rear multi handle soil ripper, dual-use for loosening soil and clearing land ### 5. Walking transmission -Power shift gearbox, 3 forward and 3 reverse gears -Differential steering technology: When fully loaded with bulldozer, the tracks on both sides continuously output power, and the vehicle does not slip or sink during wet turns -Walking speed: 3.5km/h at low speed, 10.8km/h at high speed ### 6. Chassis structure (wetland exclusive reinforcement) -Elevated chain wheel suspension chassis (CAT classic design), isolated from mud impact, protects the final drive -Extend the track frame, widen the support wheels, seal and lubricate the tracks, and reduce wear in muddy environments -Full support heavy wheel suspension, fits soft ground, and has stronger grip
