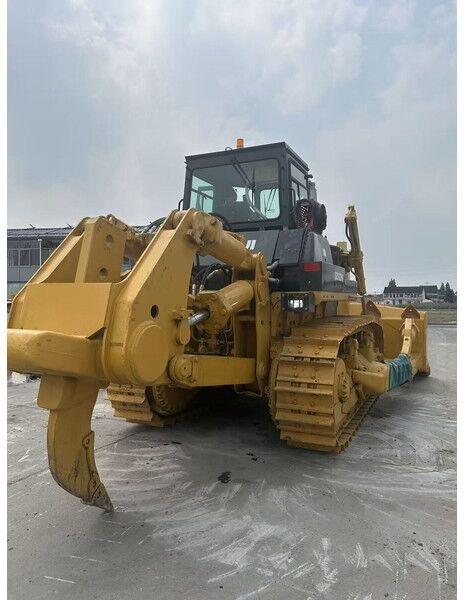

Bulldozer SD32 SD32

1.Engine Model: Cummins NTA855-C360S10 / QSNT-C345 Inline 6-cyl Turbo Diesel Net Power: 235kW(320HP)@2000rpm; New C5:257kW(345HP)@1900rpmShantui Construction Machinery Co., Ltd. Displacement:14.01L, Max Torque:1440N·m@1400rpm 2.Operating Weight Without Ripper:37200kg; With Single-shank Ripper:39700kgShantui Construction Machinery Co., Ltd. Ground Pressure:0.105MPa(560mm track shoe) 3.Blade Data Straight Tilt Blade: Capacity 10m³, Width 4130mm, Max Dig Depth 560mm, Lift Height1560mm Angle Blade:6.2m³, Width5000mm Semi-U Blade:11.7m³, Width4030mm Ripper:Single shank max rip depth1250mm, triple shank842mm 4.Travel Speed Forward: F1:0~3.6km/h;F2:0~6.6km/h;F3:0~11.5km/h Reverse:R1:0~4.4km/h;R2:0~7.8km/h;R3:0~13.5km/h Max Drawbar Pull:280kN, Gradeability:30° 5.Dimension & Tank Overall Size(L×W×H):8560×4130×3640mm(without ripper) Track Gauge:2140mm, Fuel Tank:640L **More information** Year of manufacture: **2025** Engine type: **Cummins NTA855-C360S10** Warranty: **12 months** Operating depth: **1250 mm** Dozer blade width: **4.13 mm**
